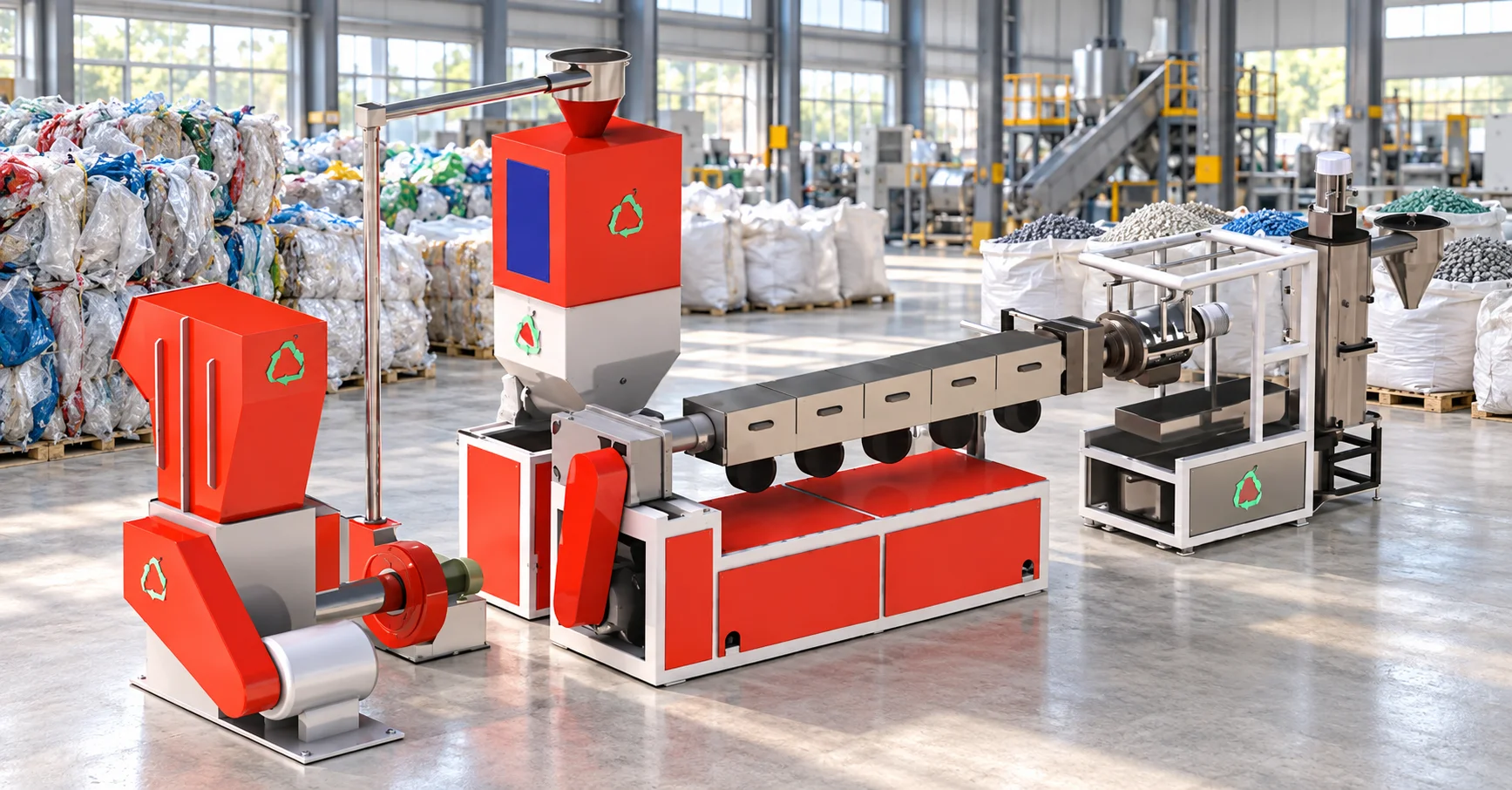

DIE FACE CUTTER AUTOMATIC DANA MAKING MACHINE

The Die Face Cutter Automatic Dana Making Machine is an advanced and efficient solution designed for the plastic recycling industry. This machine is specifically engineered to convert plastic waste into uniform dana (granules) through an automated process, enhancing productivity and reducing manual intervention. The key component, the die face cutter, ensures precise and consistent cutting of the extruded plastic strands into granules, achieving uniform size and shape.

Equipped with state-of-the-art technology, this machine features a robust and durable construction, capable of handling various types of plastic materials, including PE, PP, PVC, and more. The automation system integrates a user-friendly interface, allowing operators to easily monitor and control the entire process. The temperature control system maintains optimal conditions for extrusion, preventing material degradation and ensuring high-quality output.

The Die Face Cutter Automatic Dana Making Machine is designed for energy efficiency, reducing operational costs while maximizing output. It also includes safety mechanisms to protect operators and prevent accidents. Ideal for both small and large-scale recycling operations, this machine significantly boosts production efficiency, making it an indispensable asset for businesses aiming to streamline their plastic recycling process and produce high-quality plastic granules.

Download Brochure

TECHNICAL SPECIFICATION

PLANT MODEL HRPI-75 HRPI-90 HRPI-100 HRPI-110

OUTPUT 60-80 KG/HR 100-150 KG/HR 150-220KG/HR 200-250 KG/HR

MATERIAL NAME LD, PP, BOPP,RAFFIA ALLTYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC LD, PP, BOPP,RAFFIA ALL TYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC LD, PP, BOPP,RAFFIA ALL TYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC LD, PP, BOPP,RAFFIA ALL TYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC

SIZE 75 MM 90 MM 100 MM 110 MM

VENTED SCREW BARREL EN 41 B WITH SPECIAL GAS NITRATING EN 41 B WITH SPECIAL GAS NITRATING EN 41 B WITH SPECIAL GAS NITRATING EN 41 B WITH SPECIAL GAS NITRATING

GEAR BOX 200 CD GEAR BOX (STANDARD COMPANY) 225 CD GEAR BOX (STANDARD COMPANY) 225 CD GEAR BOX (STANDARD COMPANY) 250 CD GEAR BOX (STANDARD COMPANY)

MOTOR 30 HP 40 HP 50 HP 60 HP

CONTROL PANNEL 8 JONE 10 JONE 10 JONE 10 JONE

SCREEN CHANGER 6” INCH 8” INCH 8” INCH 10” INCH

AUTOMATIC HOPPER LOADER 2 HP AIR BLOWER 2 HP AIR BLOWER 2 HP AIR BLOWER 3 HP AIR BLOWER

SCREEN CHANGER 2 HP GEAR MOTOR 3 HP GEAR MOTOR 5 HP GEAR MOTOR 5 HP GEAR MOTOR

DIE FACE CUTTER SYSTEM YES YES YES YES

GRINDER 16 INCH 16 INCH 18 INCH 24 INCH

GRINDER MOTOR 20 HP 25 HP 30 INCH 30 INCH

PLANT MODEL	HRPI-75	HRPI-90	HRPI-100	HRPI-110
OUTPUT	60-80 KG/HR	100-150 KG/HR	150-220KG/HR	200-250 KG/HR
MATERIAL NAME	LD, PP, BOPP,RAFFIA ALLTYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC	LD, PP, BOPP,RAFFIA ALL TYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC	LD, PP, BOPP,RAFFIA ALL TYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC	LD, PP, BOPP,RAFFIA ALL TYPE OF POLYTHENE PLASTIC MATERIAL/HD,PP HARD PLASTIC
SIZE	75 MM	90 MM	100 MM	110 MM
VENTED SCREW BARREL	EN 41 B WITH SPECIAL GAS NITRATING	EN 41 B WITH SPECIAL GAS NITRATING	EN 41 B WITH SPECIAL GAS NITRATING	EN 41 B WITH SPECIAL GAS NITRATING
GEAR BOX	200 CD GEAR BOX (STANDARD COMPANY)	225 CD GEAR BOX (STANDARD COMPANY)	225 CD GEAR BOX (STANDARD COMPANY)	250 CD GEAR BOX (STANDARD COMPANY)
MOTOR	30 HP	40 HP	50 HP	60 HP
CONTROL PANNEL	8 JONE	10 JONE	10 JONE	10 JONE
SCREEN CHANGER	6” INCH	8” INCH	8” INCH	10” INCH
AUTOMATIC HOPPER LOADER	2 HP AIR BLOWER	2 HP AIR BLOWER	2 HP AIR BLOWER	3 HP AIR BLOWER
SCREEN CHANGER	2 HP GEAR MOTOR	3 HP GEAR MOTOR	5 HP GEAR MOTOR	5 HP GEAR MOTOR
DIE FACE CUTTER SYSTEM	YES	YES	YES	YES
GRINDER	16 INCH	16 INCH	18 INCH	24 INCH
GRINDER MOTOR	20 HP	25 HP	30 INCH	30 INCH
